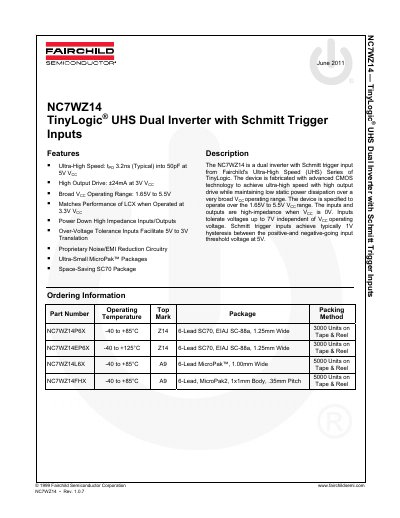

The NC7WZ14 is a dual input Schmitt trigger switch from Fairchild's Ultra-High Speed (UHS) Series of TinyLogic. It features ultra-high speed, high output drive, and wide operating voltage range.
The NC7WZ14 is a dual inverter with Schmitt trigger input from Fairchild's Ultra-High Speed (UHS) Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a very broad Vcc operating range. The device is specified to operate over the 1.65V to 5.5V Vcc range.
| Operating Temperature (MicroPak) | -40 to +85°C |
|---|---|
| Supply Voltage Range | 1.65V to 5.5V |
| Propagation Delay (Typical) | 3.2ns |
| High Output Drive | +24mA at 3V |
| Input Hysteresis (Typical) | 1V |
The device is specified to operate over the 1.65V to 5.5V Vcc range.
The device is available in 6-Lead SC70 and 6-Lead MicroPak packages.
