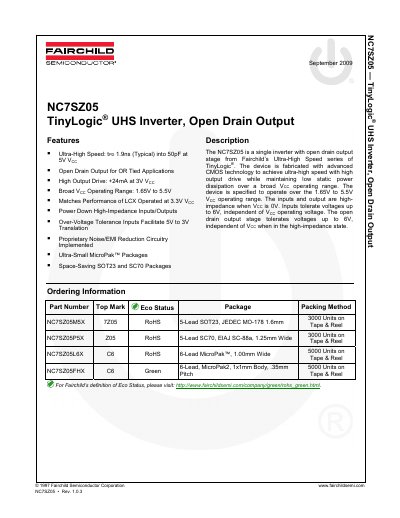

This datasheet lists the characteristics of the NC7SZ05 open drain output device. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range.
The NC7SZ05 is a single inverter with an open drain output stage from Fairchild's Ultra-High Speed series of TinyLogic. Fabricated with advanced CMOS technology, it achieves ultra-high speed with high output drive while maintaining low static power dissipation over a broad Vcc operating range of 1.65V to 5.5V. The device features high-impedance inputs and outputs when Vcc is 0V, and inputs tolerate voltages up to 6V independent of Vcc.
The document provides detailed electrical characteristics, including DC and AC parameters, absolute maximum ratings, and recommended operating conditions. It also includes connection diagrams, pin configurations for various packages (SOT23, SC70, MicroPak), and physical dimensions with land pattern recommendations.
| Propagation Delay (Typical) | 1.9ns |
|---|---|
| High Output Drive | +24mA at 3V Vcc |
| Vcc Operating Range | 1.65V to 5.5V |
| Operating Temperature | -40°C to +85°C |
The typical propagation delay is 1.9ns into 50pF at 5V Vcc.
The device provides a high output drive of +24mA at 3V Vcc.
The recommended operating temperature range is from -40°C to +85°C.
