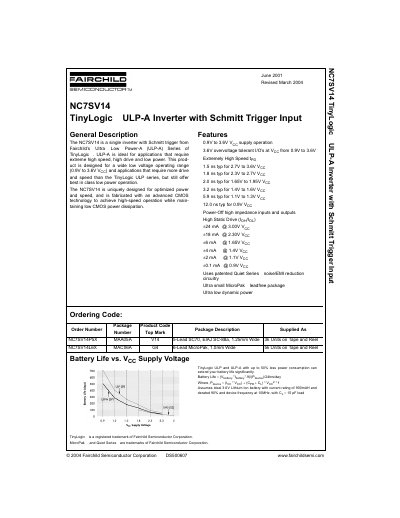

The NC7SV14 is a single inverter with Schmitt trigger from Fairchild’s Ultra Low Power-A (ULP-A) Series of TinyLogic. ULP-A is ideal for applications that require extreme high speed, high drive and low power. This product is designed for a wide low voltage operating range (0.9V to 3.6V VCC) and applications that require more drive and speed than the TinyLogic ULP series, but still offer best in class low power operation. The NC7SV14 is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve high-speed operation while maintaining low CMOS power dissipation.
The document describes the NC7SV14, part of Fairchild's Ultra Low Power-A (ULP-A) Series TinyLogic family. It is designed for applications requiring extreme high speed, high drive, and low power operation across a wide low-voltage range. The device features patented Quiet Series noise/EMI reduction circuitry and is available in MicroPak leadfree packages.
| Operating Temperature Range | -65°C to +150°C |
|---|---|
| High Static Drive @ 3.0V | 424mA |
| Propagation Delay Typ (2.7V to 3.6V) | 1.5 ns |
The device operates with a supply voltage from 0.9V to 3.6V.
Yes, it uses patented Quiet Series noise/EMI reduction circuitry.
