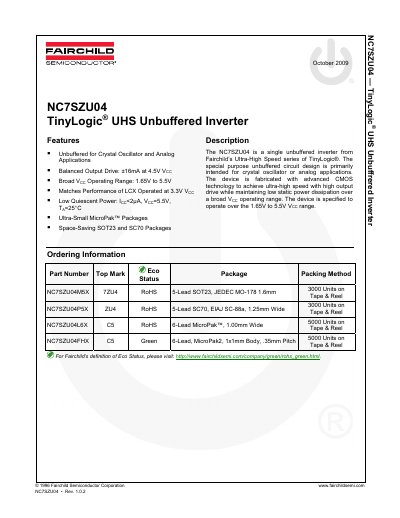

The NC7SZU04 is a single unbuffered inverter from Fairchild’s Ultra-High Speed series of TinyLogic®. The special purpose unbuffered circuit design is primarily intended for crystal oscillator or analog applications. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range.
The NC7SZU04 is a single unbuffered inverter from Fairchild's Ultra-High Speed series of TinyLogic devices. It is designed primarily for crystal oscillator and analog applications, offering balanced output drive and a broad Vcc operating range from 1.65V to 5.5V. The device utilizes advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation.
| Supply Voltage Range | 1.65V to 5.5V |
|---|---|
| Quiescent Current | <2µA |
| Output Drive | +16mA at 4.5V |
| Operating Temperature | -40°C to +85°C |
| Package Types | SOT23, SC70, MicroPak |
The device is primarily intended for crystal oscillator or analog applications.
No, unused inputs must be held HIGH or LOW and may not float.
