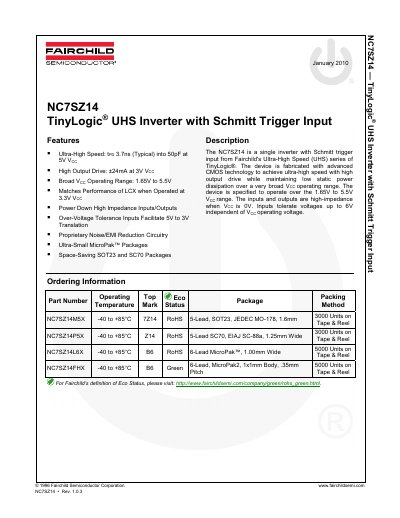

The NC7SZ14 is a single inverter with Schmitt trigger input from Fairchild's Ultra-High Speed (UHS) series of TinyLogic®. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and outputs are high-impedance when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage.
The NC7SZ14 is a single inverter with a Schmitt trigger input from Fairchild's Ultra-High Speed (UHS) series of TinyLogic devices. Fabricated with advanced CMOS technology, it achieves ultra-high speed with high output drive while maintaining low static power dissipation over a broad operating range. The device is specified to operate over a Vcc range of 1.65V to 5.5V, with inputs and outputs that are high-impedance when Vcc is 0V.
| Propagation Delay (Typical) | 3.7ns |
|---|---|
| High Output Drive | +24mA |
| Operating Voltage Range | 1.65V to 5.5V |
| Package Types | SOT23, SC70, MicroPak |
| Storage Temperature Range | -65 to +150 °C |
The typical propagation delay is 3.7ns into a 50pF load.
Yes, the inputs and outputs are high-impedance when Vcc is 0V.
