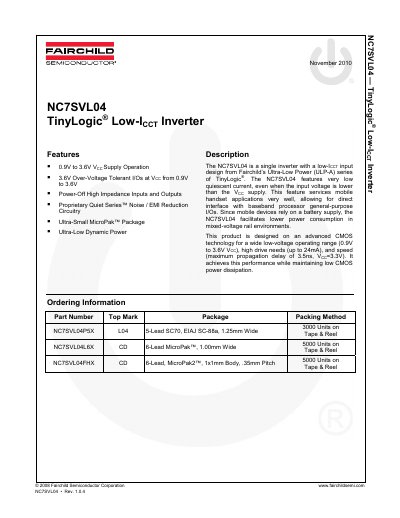

The NC7SVL04 is a single inverter with a low-ICCT input design from Fairchild's Ultra-Low Power (ULP-A) series of TinyLogic®. The NC7SVL04 features very low quiescent current, even when the input voltage is lower than the VCC supply.
The document describes the NC7SVL04, a single inverter designed for mobile handset applications with very low quiescent current. It operates within a wide voltage range of 0.9V to 3.6V Vcc supply and features proprietary Quiet Series noise/EMI reduction circuitry.
| Supply Voltage Operation Range | 0.9V to 3.6V |
|---|---|
| Over-Voltage Tolerant I/Os | at Vcc from 0.9V to 3.6V |
| Maximum Propagation Delay (Vec=3.3V) | 3.5ns |
| High Drive Capability | up to 24mA |
| Operating Temperature Range | -40°C to +85°C |
The device supports a Vcc supply operation from 0.9V to 3.6V.
Yes, the I/Os are 3.6V Over-Voltage Tolerant even when Vcc is between 0.9V and 3.6V.
The inputs and outputs enter a high impedance state when powered off.
