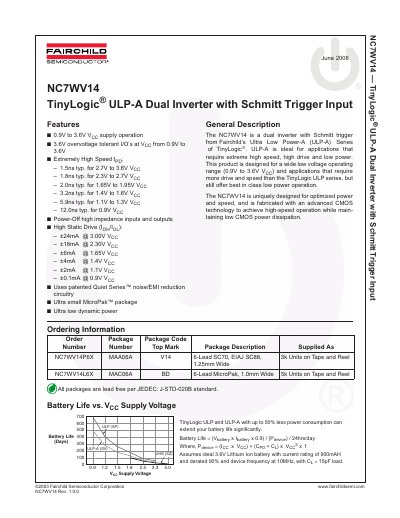

NC7WV14 is a dual inverter with Schmitt trigger input, designed for 0.9V to 3.6V supply operation. It features extremely high speed, low power consumption, and high drive capability.
The NC7WV14 is a dual inverter featuring Schmitt trigger inputs designed for the Ultra Low Power-A (ULP-A) Series. It operates over a wide voltage range of 0.9V to 3.6V and offers extremely high speed with typical propagation delays as low as 1.5ns at 2.7V to 3.6V supply voltages.
The device utilizes patented Quiet Series™ noise/EMI reduction circuitry and is available in an Ultra small MicroPak™ package or SC70 package. It provides high static drive capabilities, reaching up to +24mA at 3.0V Vcc.
| Supply Voltage Range | 0.9V to 3.6V |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Typical Propagation Delay (2.7V-3.6V) | 1.5ns |
| High Static Drive (3.0V Vcc) | +24mA |
The device operates in free air from -40°C to +85°C.
The maximum supply voltage is +4.6V.
The typical propagation delay is 1.5ns for voltages from 2.7V to 3.6V.
