The NC7SU04 is a HS Unbuffered Inverter from Fairchild Semiconductor Corporation. The device is packaged in a SOT23 or SC70 5-lead package and features a very low quiescent current of ICC < 1 µA, bidirectional output drive of 2 mA IOL, −2 mA IOH and a wide operating voltage range of VCC Operating Range; 2V–6V.

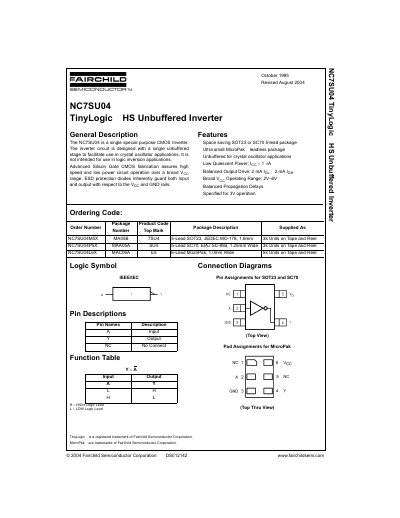

The document describes the NC7SU04, a single special purpose CMOS inverter designed with an unbuffered stage to facilitate use in crystal oscillator applications. It features advanced silicon gate fabrication for high speed and low power operation over a broad voltage range of 2V to 6V.
| Operating Temperature Range | -40°C to +85°C |
|---|
It is designed with a single unbuffered stage to facilitate use in crystal oscillator applications.
No, it is not intended for use in logic inversion applications.
