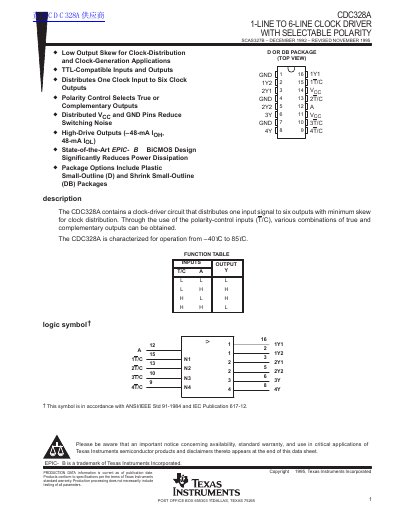

CDC328A 1-LINE TO 6-LINE CLOCK DRIVER WITH SELECTABLE POLARITY is a clock driver that provides 1 input and 6 outputs, with polarity control.
The CDC328A is a 1-line to 6-line clock driver designed for clock-distribution or clock-generation applications. It features state-of-the-art EP/IC-IIB™ BiCMOS design which significantly reduces power dissipation. The device distributes one clock input signal to six outputs with minimum skew and includes polarity control inputs (T/C) to select various combinations of true and complementary outputs.
| Operating Temperature Range | -40°C to 85°C |
|---|
The device is characterized for operation from -40°C to 85°C.
The maximum input clock frequency is 100 MHz.
The maximum power dissipation is 0.77 W at Ta = 55°C.
