The NZT753 is a Fairchild Semiconductor Corporation NPN bipolar junction transistor with a maximum collector-emitter voltage of 100V, a maximum collector-base voltage of 120V, a maximum emitter-base voltage of 5.0V, and a maximum collector current of 4.0A. Its operating temperature range is -55~+150°C.

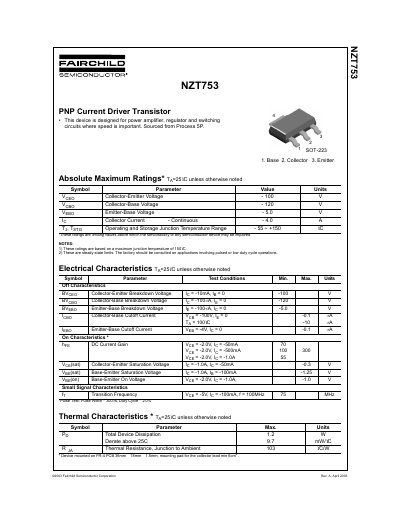

The document describes the Fairchild NZT753, a PNP current driver transistor sourced from Process 5P. It is specifically designed for use in power amplifiers, regulators, and switching circuits where speed is important. The device features three terminals: Base, Collector, and Emitter.
| Emitter-Base Voltage (VEBO) | -5.0 v |
|---|---|
| Collector Current (Continuous) | -4.0 A |
| Operating Junction Temperature Range | -55 ~ +150 °C |
| Total Device Dissipation (Pp) | 1.2 Ww |
This device is designed for power amplifier, regulator and switching circuits where speed is important.
The device must be mounted on an FR-4 PCB measuring 36mm x 18mm x 1.5mm.
