This file is the absolute maximum rating, electrical characteristics, thermal characteristics of ZTX614.

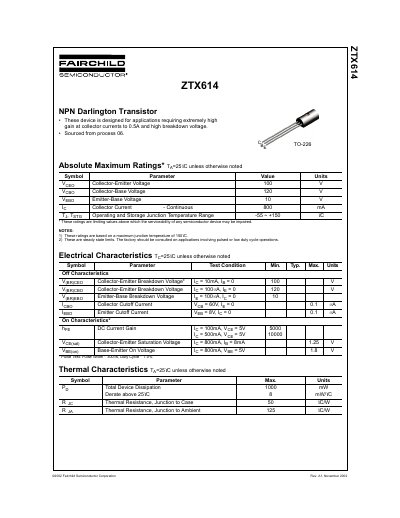

This document is a datasheet for the Fairchild ZTX614 NPN Darlington Transistor. The device is designed for applications requiring extremely high gain at collector currents up to 0.5A and high breakdown voltage. It is sourced from process 06 and is packaged in a TO-226 case.
| Collector-Emitter Voltage | 100 V |
|---|---|
| Collector-Base Voltage | 120 V |
| Emitter-Base Voltage | 10 V |
| Collector Current - Continuous | 800 mA |
| Operating and Storage Junction Temperature Range | -55 ~ +150 °C |
| Total Device Dissipation | 1000 mW |
| Thermal Resistance, Junction to Case | 50 °C/W |
The maximum continuous collector current is 800 mA.
The device is packaged in a TO-226 case.
