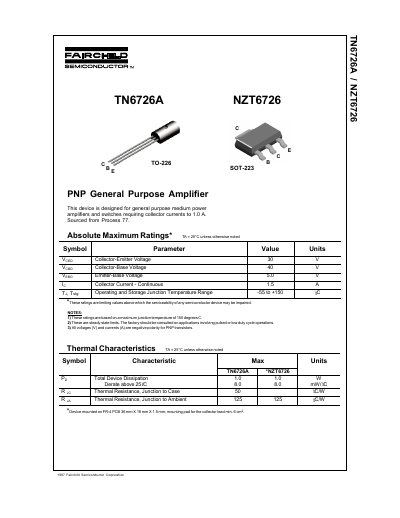

Fairchild TN6726A/NZT6726 PNP General Purpose Amplifier Datasheet

TN6726A is a general purpose medium power amplifier and switch from Fairchild Semiconductor Corporation with a maximum collector current of 1.0 A.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 12
File format: PDF
File size: 611 KB
Published: 12 July, 2012
Updated: 01 October, 2023
MD5 checksum: B3F90F61DC37F2E6720B2A5813E0F8BE
PDF: Fairchild TN6726A/NZT6726 PNP General Purpose Amplifier Datasheet PDF

About this manual

The document describes the TN6726A and NZT6726, which are PNP general-purpose amplifiers designed for medium power applications requiring collector currents up to 1.0 A. The device is available in TO-226 (SOT-223) packages.

What's inside

Absolute Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics
Safe Operating Area
TO-226AE Tape and Reel Data
Package Dimensions

Specifications

Collector Current - Continuous	1.5 A
Total Device Dissipation (TN6726A)	1.0 W
Thermal Resistance, Junction to Case	50 °C/W

Frequently asked questions

What are the maximum collector current and power dissipation ratings?

The device supports a continuous collector current of up to 1.5 A and has a total device dissipation rating of 1.0 W.

What is the maximum junction temperature for operation or storage?

The operating and storage junction temperature range extends from -55 to +150 °C.

What is the maximum collector-emitter voltage rating?

The absolute maximum collector-emitter voltage is 30 V.
