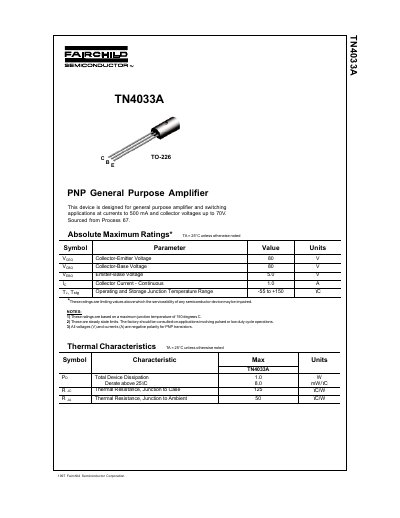

The TN4033A is a PNP general purpose amplifier designed for currents up to 500 mA and collector voltages up to 70V. It is sourced from Process 67.
This document provides the design specifications and final specifications for the TN4033A, a PNP General Purpose Amplifier designed for general purpose amplifier and switching applications. The device supports currents up to 500 mA and collector voltages up to 70V.
| Collector Current - Continuous | 1.0 A |
|---|---|
| Total Device Dissipation | 1.0 W |
| Thermal Resistance, Junction to Case | 125 °C/W |
| DC Current Gain (Min) | 25 |
The continuous collector current rating is 1.0 A.
The device supports collector voltages up to 70V and currents up to 500 mA.
The maximum total device dissipation is rated at 1.0 W.
The operating and storage junction temperature range is from -55 to +150 °C.
