TN6727A is a PNP general purpose power amplifier, suitable for general purpose medium power amplifiers and switches requiring collector currents to 1A.

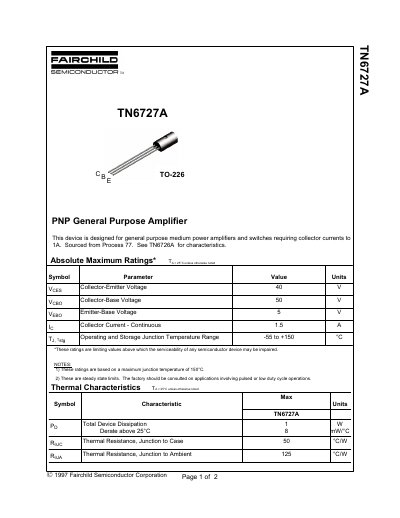

This document is a datasheet for the Fairchild Semiconductor TN6727A, a PNP General Purpose Amplifier designed for medium power applications requiring collector currents up to 1A. The device is sourced from Process 77 and is available in a TO-226 package.
The datasheet provides comprehensive technical specifications, including absolute maximum ratings such as a collector-emitter voltage of 40V and a continuous collector current of 1.5A. It also lists electrical characteristics for both OFF and ON states, as well as small signal parameters like output capacitance and current gain.
| Collector Current - Continuous | 1.5 A |
|---|---|
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Total Device Dissipation | 1 W |
| Thermal Resistance, Junction to Case | 50 °C/W |
| Thermal Resistance, Junction to Ambient | 125 °C/W |
The maximum continuous collector current is 1.5 A.
The minimum DC current gain is 50.
