Fairchild Semiconductor KST2907A PNP Epitaxial Silicon Transistor Datasheet

KST2907A is a PNP type NPN transistor manufactured by Fairchild Semiconductor Corporation. Its maximum current is -600mA, maximum power is 350mW, and working temperature range is -55~150℃.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 54 KB
Published: 12 July, 2012
Updated: 01 October, 2023
MD5 checksum: B50DF1AA898A09170504E18F550B3EE5

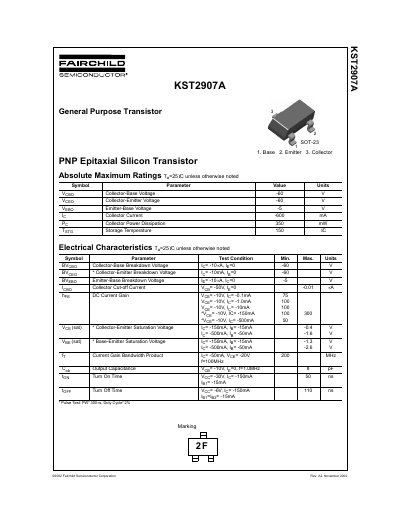

PDF: Fairchild Semiconductor KST2907A PNP Epitaxial Silicon Transistor Datasheet PDF

About this manual

This document is a datasheet for the Fairchild Semiconductor KST2907A, a general-purpose PNP epitaxial silicon transistor. It provides comprehensive technical specifications including absolute maximum ratings, electrical characteristics, and typical performance curves.

What's inside

Absolute Maximum Ratings
Electrical Characteristics
Typical Characteristics
Package Dimensions
Marking
Trademarks
Disclaimer
Life Support Policy
Product Status Definitions

Specifications

Collector Power Dissipation	350 mW

Frequently asked questions

What is the maximum collector current for this transistor?

The maximum collector current is -600 mA.

What is the maximum power dissipation rating?

The maximum collector power dissipation is 350 mW.

What is the maximum storage temperature?

The maximum storage temperature is 150 °C.
