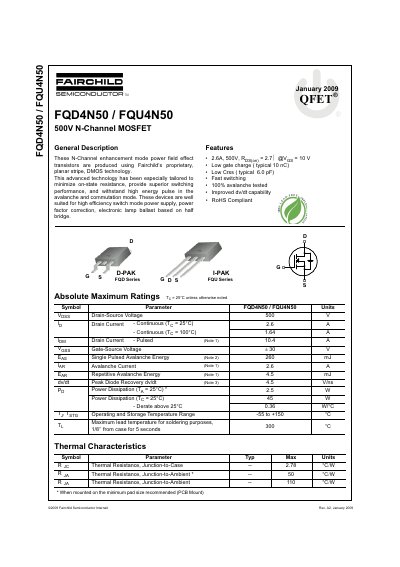

This document is a datasheet for the Fairchild Semiconductor FQD4N50 and FQU4N50 N-Channel enhancement mode power field effect transistors. These devices utilize proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. They are well suited for high efficiency switch mode power supplies, power factor correction, and electronic lamp ballasts based on half bridge configurations.
| Drain-Source Voltage | 500 V |
|---|---|
| Continuous Drain Current (25°C) | 2.6 A |
| Gate-Source Voltage | +30 V |
| Single Pulsed Avalanche Energy | 260 mJ |
| Power Dissipation (Ta = 25°C) | 25 W |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | TO-252 (DPAK) |
The typical gate charge is 10 nC.
Yes, the device is RoHS Compliant.
The typical on-resistance is 2.72 Ohms at Vgg = 10 V.
