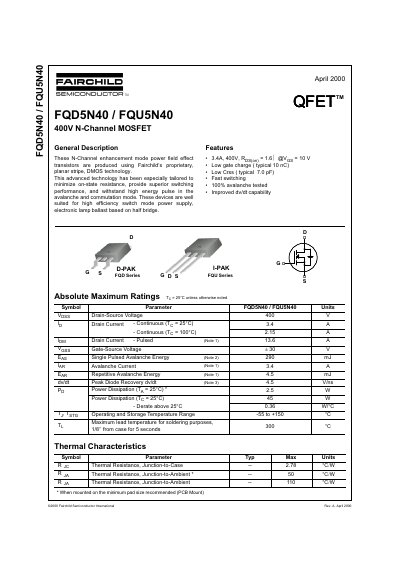

This document provides design specifications for the FQD5N40 and FQU5N40, which are 400V N-Channel MOSFETs produced using Fairchild's proprietary planar stripe DMOS technology. These devices feature low on-state resistance and superior switching performance, making them suitable for high efficiency switch mode power supplies and electronic lamp ballasts based on half bridge configurations.
| Drain-Source Voltage | 400 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 3.4 A |
| Pulsed Drain Current | 13.6 A |
| Gate-Source Voltage | +/- 30 V |
| Single Pulsed Avalanche Energy | 290 mJ |
| Power Dissipation (Ta = 25°C) | * 25 Ww |
| Operating and Storage Temperature Range | -55 to +150 °C |
The maximum continuous drain current is 3.4 A when the case temperature is 25°C.
The device has a maximum drain-source voltage rating of 400 V.
The operating and storage temperature range is from -55 to +150 °C.
