This document is the user manual for N-Channel TO-220 and D2PAK. It introduces the features of the product, such as higher current rating, lower RDS(on), lower VDS(on), lower capacitances, lower total gate charge, tighter VSD specification, lower diode reverse recovery time and lower reverse recovery stored charge.

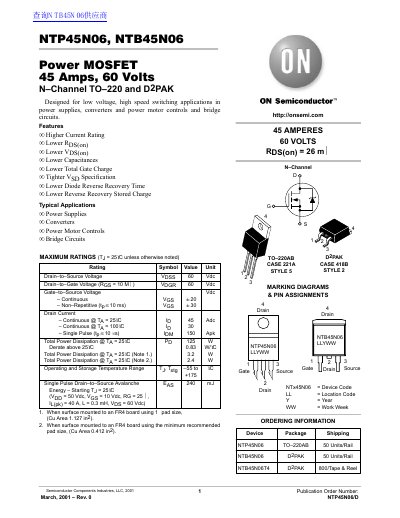

The document provides technical data for the NTP45N06 and NTB45N06 Power MOSFETs, designed for low voltage, high speed switching applications such as power supplies, converters, motor controls, and bridge circuits. Key features include a 45 Amp continuous drain current rating at 25°C and a maximum drain-to-source voltage of 60 Volts.
| Drain-to-Source Voltage (Vdss) | 60 Vdc |
|---|---|
| Continuous Drain Current @ Ta = 25°C | 45 A |
| Total Power Dissipation @ Ta = 25°C (TO-220AB) | 125 W |
| Static Drain-to-Source On-Resistance (Rds(on)) | 26 mOhm |
The device supports 45 amps continuously at 25°C and 30 amps continuously at 100°C.
The maximum total power dissipation is 125 watts when the ambient temperature is 25°C.
It is designed for use in power supplies, converters, and power motor controls.
