This document describes the features and characteristics of the NTP75N06 and NTB75N06 power MOSFETs. They are designed for low voltage, high speed switching applications in power supplies, converters, power motor controls, and bridge circuits.

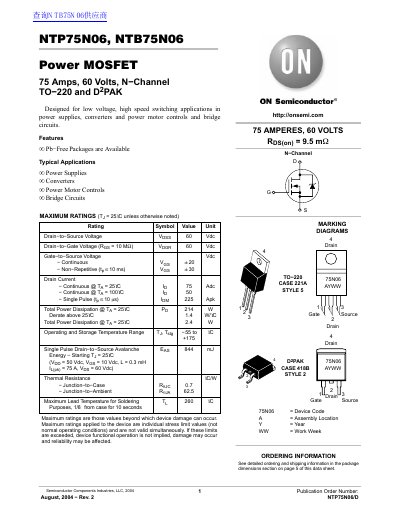

This document provides technical specifications for the NTP75N06 and NTB75N06 N-channel power MOSFETs. These devices are designed for low voltage, high speed switching applications found in power supplies, converters, motor controls, and bridge circuits.
The datasheet details maximum ratings such as a drain-to-source voltage of 60V and continuous drain current up to 75A at 25°C. It also includes electrical characteristics like on-resistance, capacitance values, and switching times, along with thermal resistance data for junction-to-case and junction-to-ambient.
