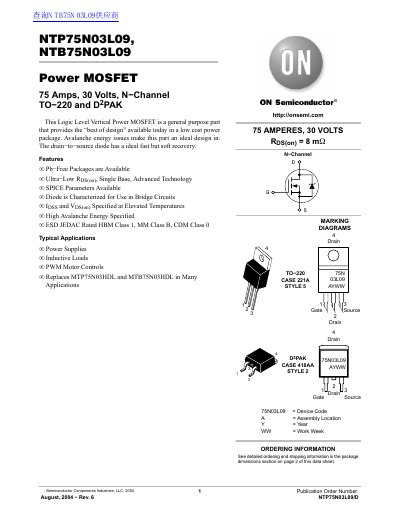

This is a document about the NTP75N03L09 and NTB75N03L09 power MOSFETs. The device is a general purpose part that provides the best design available today in a low cost power package. It features an ideal fast but soft recovery drain-to-source diode. The document describes the features and applications of the device, and provides ordering and shipping information.
This document is a technical datasheet for the NTP75N03L09 and NTB75N03L09, which are logic level vertical power MOSFETs. These devices are designed as general-purpose parts suitable for low-cost applications requiring avalanche energy capability.
| Drain-to-Source Voltage | 30 Vdc |
|---|---|
| Total Power Dissipation | 125 W @ 25°C, 25 W @ Ta = 25°C |
| Operating Temperature Range | -55 to 150 °C |
They are ideal for power supplies, inductive loads, and PWM motor controls.
It replaces MTP75N03HDL and MTB75N03HDL in many applications.
