NTP85N03, NTB85N03 is an N-channel MOSFET with a rated voltage of 28 V and a rated current of 85 A, designed for low voltage, high speed switching applications such as power supplies, converters and motor controllers and bridge circuits.

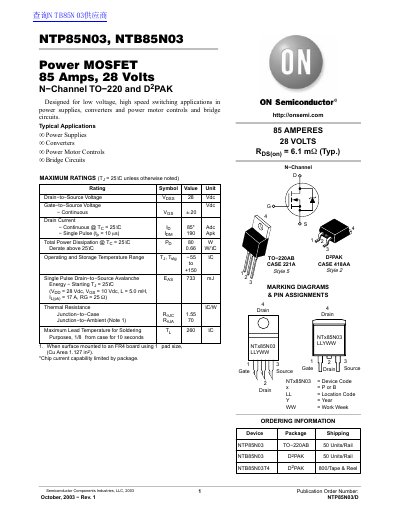

This document provides technical specifications and characteristics for the NTP85N03 and NTB85N03 N-Channel Power MOSFETs. These devices are designed for low voltage, high speed switching applications in power supplies, converters, power motor controls, and bridge circuits. They are available in TO-220 and D2PAK packages.
| Drain-to-Source Voltage | 28 V |
|---|---|
| Continuous Drain Current | 85 A |
| Total Power Dissipation | 80 W |
| Operating Temperature Range | -55°C to +150°C |
| Package Types | TO-220AB, D2PAK |
They are designed for low voltage, high speed switching applications in power supplies, converters, power motor controls, and bridge circuits.
The maximum continuous drain current at Tg = 25°C is 85 A.
The minimum drain-to-source breakdown voltage is 28 V.
