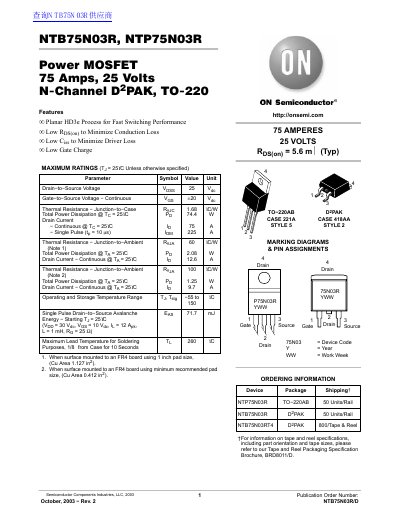

NTB75N03R/D is a power MOSFET product with N-channel characteristics, 75 amps and 25 volts. It adopts the Planar HD3e process, which provides fast switching performance, low conduction loss, and low driver loss.
This document provides a comprehensive technical overview of the NTB75N03R and NTP75N03R Power MOSFETs, available in D2PAK and TO-220 packages. Key features include the Planar HD3e Process for fast switching performance and low on-resistance to minimize conduction losses. The datasheet specifies maximum ratings such as a drain-to-source voltage of 25 Vdc and a continuous drain current of 75 A at 25°C.
| Drain-to-Source Voltage | 25 Vdc |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 75 A |
| Single Pulse Drain Current | 225 A |
| Thermal Resistance Junction-to-Case | 1.68 °C/W |
| Total Power Dissipation (Tc = 25°C) | 74.4 W |
| Static Drain-to-Source On-Resistance (Typ) | 5-6 mΩ |
| Package Types | D2PAK, TO-220 |
The maximum drain-to-source voltage is 25 Vdc.
The continuous drain current is 75 A when the junction temperature is 25°C.
The device is available in D2PAK and TO-220 packages.
