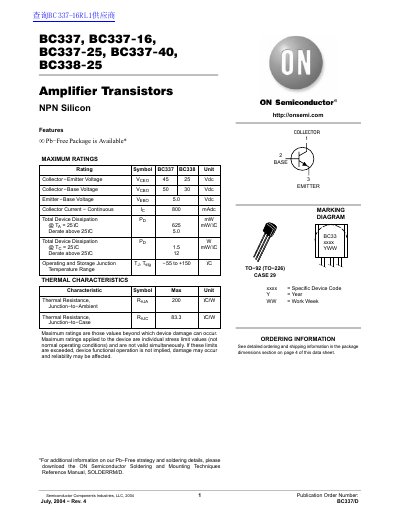

This data sheet provides the characteristics of BC337, BC337-16, BC337-25, BC337-40, BC338-25.
This document is a technical datasheet for the ON Semiconductor BC337 and BC338 series of NPN silicon amplifier transistors. It provides detailed specifications including maximum ratings such as collector-emitter voltage up to 45V and continuous collector current up to 800mA.
The text includes electrical characteristics tables for both OFF and ON states, small-signal parameters like output capacitance and current-gain bandwidth product, and graphical representations of the safe operating area. It also details ordering information for various package types (TO-92) and marking codes.
| Collector - Emitter Voltage (VCEO) | 45 V (BC337), 25 V (BC338) |
|---|---|
| Collector Current — Continuous | 800 mA |
| Total Device Dissipation (Ta = 25°C) | 625 mW |
| Thermal Resistance, Junction-to-Ambient | 200 °C/W |
The maximum collector-emitter voltage (VCEO) for the BC337 is 45 V.
The continuous collector current (Io) is rated at 800 mA.
