FDZ371PZ P-Channel 1.5 V Specified PowerTrench® Thin WL-CSP MOSFET is a low-power, high-performance P-channel MOSFET specifically designed for battery management systems (BMSs) and other applications such as load switches and battery protection. The device is built on Fairchild's advanced 1.5 V PowerTrench® process with state-of-the-art “fine pitch” Thin WLCSP packaging process, which minimizes both PCB space and rDS(on).

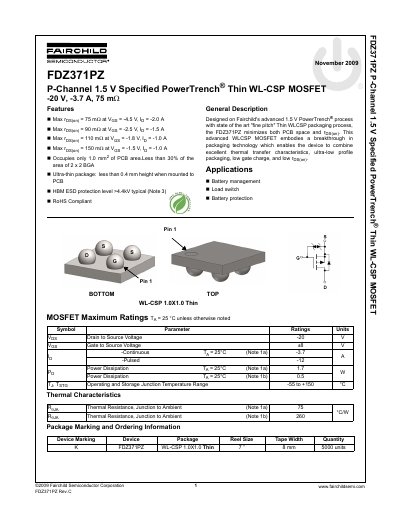

The document describes the Fairchild Semiconductor FDZ371PZ, a P-channel MOSFET utilizing the company's advanced 1.5 V PowerTrench process with a fine pitch Thin WLCSP package. Key features include an ultra-thin profile of less than 0.4 mm height and minimal PCB area occupation.
| Drain to Source Voltage (Vds) | -20 V |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | WL-CSP 1.0X1.0 Thin |
The device is designed for battery management, load switch, and battery protection applications.
Yes, the datasheet lists the product as RoHS Compliant.
