The FDZ197PZ is a P-channel power MOSFET designed using the 1.5V PowerTrench process and WL-CSP packaging technology. It features low RDS(on), small PCB footprint, ultra-thin packaging, low gate charge, etc. It is suitable for applications such as battery management, load switches, and battery protection.

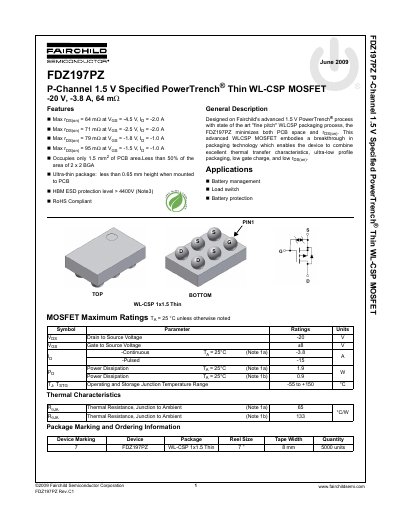

This document is a datasheet for the Fairchild FDZ197PZ, a P-Channel MOSFET designed on the company's 1.5 V PowerTrench process. The device utilizes an ultra-thin WL-CSP (Wafer Level Chip Scale Package) with a height of less than 0.65 mm, occupying only 1.5 mm² of PCB area. It is intended for applications such as battery management, load switches, and ESD protection, offering RoHS compliance and an HBM ESD protection level greater than 4400V.
| Package Type | WL-CSP 1x1.5 Thin |
|---|
Yes, the device is RoHS Compliant.
The HBM ESD protection level is greater than 4400V.
