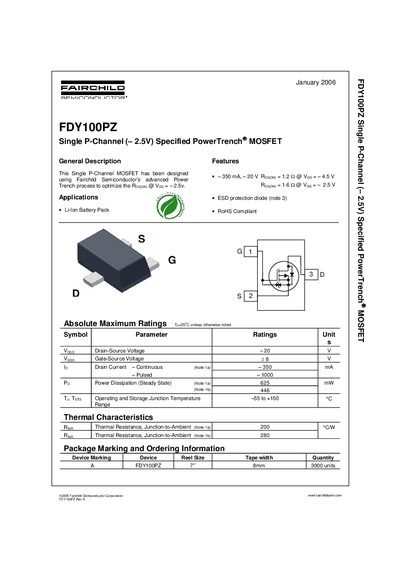

Fairchild FDY100PZ Single P-Channel MOSFET Datasheet

This document is the datasheet of FDY100PZ Single P-Channel (-2.5V) Specified PowerTrench MOSFET.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 177 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: F4C57349A915AD3F7F3B8D1BEA985CCD
PDF: Fairchild FDY100PZ Single P-Channel MOSFET Datasheet PDF

About this manual

This document is a datasheet for the Fairchild FDY100PZ, a Single P-Channel MOSFET designed using the PowerTrench process. It is specified for a drain-source voltage of -20V and a continuous drain current of 350 mA. The device is RoHS compliant and includes an ESD protection diode between the gate and source.

What's inside

General Description
Absolute Maximum Ratings
Thermal Characteristics
Package Marking
Electrical Characteristics
Typical Characteristics
Dimensional Outline
Trademarks
Disclaimer
Product Status Definitions

Specifications

Drain-Source Voltage	-20 V
Gate-Source Voltage	+8 V
Continuous Drain Current	350 mA
Pulsed Drain Current	1000 mA
Power Dissipation	625 mW
Operating Temperature Range	-55 to +150 °C
Thermal Resistance (Junction-to-Ambient)	200 °C/W

Frequently asked questions

Is the FDY100PZ RoHS compliant?

Yes, the device is RoHS compliant.

What is the function of the diode connected between the gate and source?

It serves only as protection against ESD.
