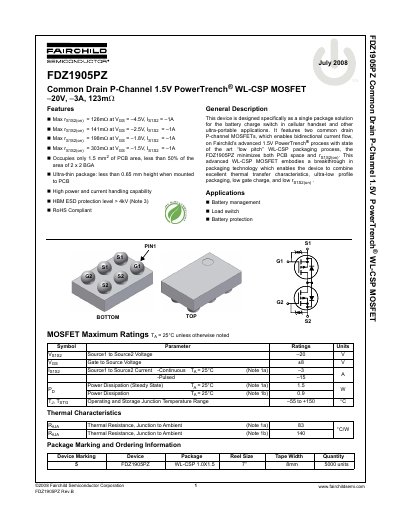

This document describes the features and characteristics of the FDZ1905PZ Common Drain P-Channel 1.5V PowerTrench® WL-CSP MOSFET, including maximum on-resistance, small PCB footprint, ultra-thin package, high power and current handling capability, etc.
The FDZ1905PZ is a Common Drain P-Channel MOSFET designed specifically as a single package solution for battery charge switches in cellular handsets and other ultra-portable applications. It features two common drain P-channel MOSFETs which enable bidirectional current flow.
| Source to Source Voltage | -20 V |
|---|---|
| Gate to Source Voltage | +8 V |
| Continuous Current | -3 A |
| Power Dissipation (Steady State) | 1.5 W |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance Junction to Ambient | 83 °C/W |
| On Resistance (Typical) | 126 mΩ |
It is designed specifically as a single package solution for the battery charge switch in cellular handset and other ultra-portable applications.
Yes, it features two common drain P-channel MOSFETs, which enables bidirectional current flow.
Yes, the device is RoHS Compliant.
