The FDZ192NZ is a N-channel 1.5V PowerTrench® thin WL-CSP MOSFET designed by Fairchild Semiconductor Corporation. The device features an extremely low RDS(on), and can operate in a voltage range of 1.5V to 20V with a maximum current of 5.3A.

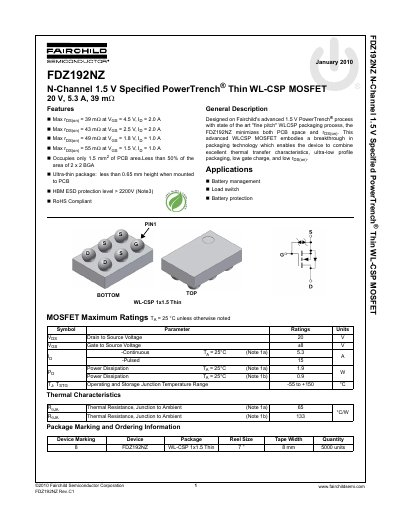

This document is a technical datasheet for the Fairchild Semiconductor FDZ192NZ, an N-Channel 1.5 V Specified PowerTrench Thin WL-CSP MOSFET. The device features a maximum drain current of 5.3 A and a static drain-to-source on-resistance (Rdson) of up to 55 mΩ at Vgs = 1.5V.
| Drain to Source Voltage (Vdss) | 20 V |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
The device supports a continuous drain current of 5.3 A when the junction temperature is 25°C.
The maximum power dissipation is 1.9 W when the junction temperature is 25°C.
The device operates and stores within a junction temperature range of -55 to +150 °C.
