FDY4000CZ is a N-P channel PowerTrench® MOSFET produced by Fairchild Semiconductor Corporation. It has a low resistance characteristic and is suitable for power supply conversion circuits, load/power switching and other applications.
The document describes the Fairchild Semiconductor FDY4000CZ, a Complementary N & P-Channel MOSFET designed using the advanced PowerTrench process. It is intended for applications such as level shifting and power supply converter circuits in devices like cell phones and pagers.

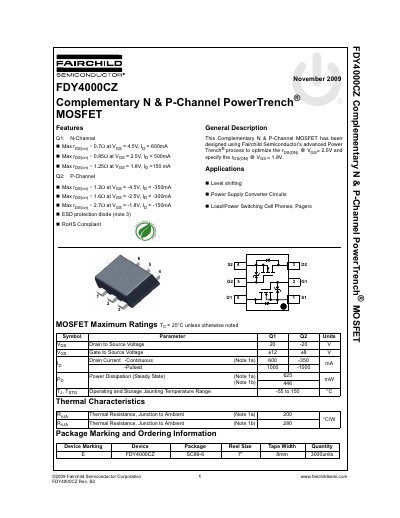

The datasheet provides comprehensive electrical specifications including maximum ratings, off and on characteristics, dynamic parameters, and switching characteristics for both N-channel (Q1) and P-channel (Q2) sections. It also includes typical performance graphs, thermal data, package marking information, and dimensional outlines conforming to the SC89-6 standard.
| Drain to Source Voltage (Q1/Q2) | ±20 V |
|---|---|
| Gate to Source Voltage | ±4.5 / ±8 V |
| Power Dissipation (Steady State) Q1 | 625 mW |
| Power Dissipation (Steady State) Q2 | 446 mW |
| Operating and Storage Temperature Range | -55 to 150 °C |
| Thermal Resistance Junction-to-Ambient (Q1) | 200 °C/W |
| Thermal Resistance Junction-to-Ambient (Q2) | 280 °C/W |
| Package Type | SC89-6 |
The device is designed for level shifting and power supply converter circuits in cell phones and pagers.
Yes, the document states that the product is RoHS Compliant.
