The FDY1002PZ is a dual P-channel power MOSFET with a low maximum on-resistance, suitable for applications such as Li-Ion battery packs.

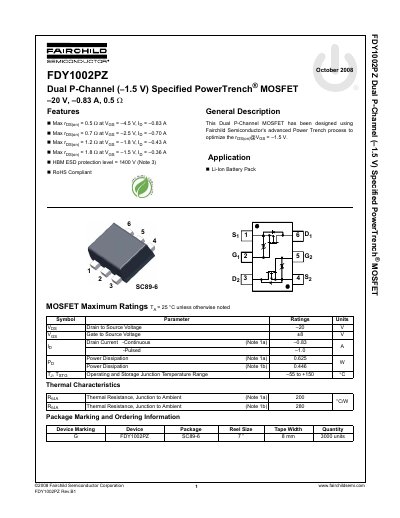

This document is a datasheet for the Fairchild FDY1002PZ, a Dual P-Channel MOSFET utilizing the PowerTrench process. It is designed for applications such as Li-Ion battery packs and features an HBM ESD protection level of 1400V. The device is RoHS compliant and operates within a junction temperature range of -55 to +150 °C.
The datasheet provides comprehensive electrical characteristics, including off-state breakdown voltage, on-resistance values under various gate-source voltages, and dynamic parameters like input and output capacitance. It also details switching characteristics, drain-source diode properties, and thermal resistance specifications for different mounting conditions.
| HBM ESD Protection Level | 1400 V |
|---|
Yes, the document states the device is RoHS Compliant.
The maximum continuous drain current is 0.83 A.
The power dissipation is 0.625 W under these conditions.
The device operates and stores between -55 and +150 °C.
