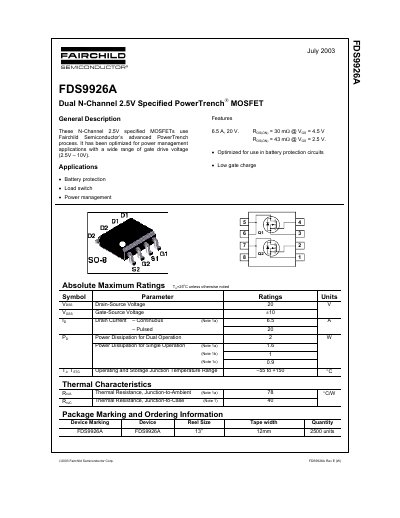

Fairchild Semiconductor FDS9926A Dual N-Channel MOSFET Datasheet

FDS9926A is a N-channel 2.5V specified MOSFET from Fairchild Semiconductor. It has a rated current and voltage of 6.5A and 20V, respectively, and is suitable for battery protection, load switching, and power management applications.

Brand: Fairchild
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 117 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: C559EF3014CD897F1CD8D791D515648D
PDF: Fairchild Semiconductor FDS9926A Dual N-Channel MOSFET Datasheet PDF

About this manual

The FDS9926A is a dual N-channel 2.5V specified PowerTrench MOSFET optimized for power management applications. It features a wide gate drive voltage range from 2.5V to 10V and is suitable for battery protection and load switch circuits. The device offers a continuous drain current of 6.5 A with a low on-resistance of 30 mΩ at 4.5V gate drive.

What's inside

General Description
Features
Absolute Maximum Ratings
Electrical Characteristics
Typical Characteristics
Package Marking and Ordering Information
Disclaimer
Product Status Definitions

Specifications

Drain-Source Voltage	20 V
On-Resistance (VGS=4.5V)	30 mΩ
On-Resistance (VGS=2.5V)	43 mΩ
Operating Junction Temperature	-55 to +150 °C

Frequently asked questions

What is the gate drive voltage range for the FDS9926A?

The device is optimized for a wide range of gate drive voltage from 2.5V to 10V.

What is the maximum continuous drain current for this MOSFET?

The device supports a continuous drain current of 6.5 A.

What is the maximum rated voltage between the drain and source?

The drain-source breakdown voltage rating is 20 V.

How much power can this component dissipate when operating as a single device?

It has a maximum power dissipation of 1.6 W for single operation.
