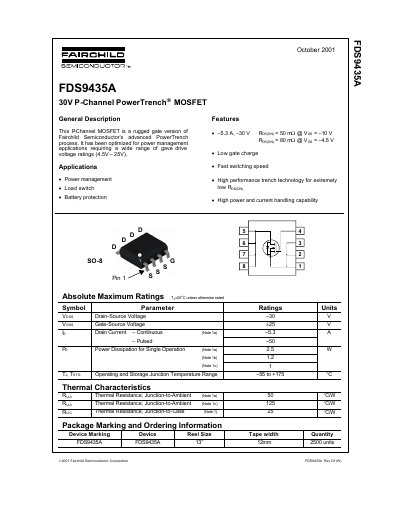

Fairchild FDS9435A P-Channel MOSFET Datasheet

FDS9435A is a 30V P-Channel PowerTrench MOSFET optimized for power management applications requiring a wide range of gave drive voltage ratings (4.5V – 25V).

Brand: Fairchild
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 65 KB
Published: 12 July, 2012
Updated: 30 September, 2023
MD5 checksum: 33B40273BA04E6BFC941787513722185
PDF: Fairchild FDS9435A P-Channel MOSFET Datasheet PDF

About this manual

This document is a technical datasheet for the Fairchild Semiconductor FDS9435A, a rugged P-Channel Enhancement Mode Field Effect Transistor (MOSFET). The device utilizes advanced PowerTrench technology to achieve extremely low on-resistance and high performance in power management circuits.

What's inside

General Description
Applications
Features
Absolute Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Typical Characteristics

Specifications

Drain-Source Voltage (Vdss)	-30 V
Gate-Source Voltage (Vgss)	+25 V
On-Resistance (Vgs=-10V)	50 mΩ
On-Resistance (Vgs=-4.5V)	80 mΩ

Frequently asked questions

What is the maximum power dissipation for a single pulse operation?

The maximum power dissipation for a single pulse is 25 W.

What is the operating and storage junction temperature range?

The operating and storage junction temperature range is -55 to +175 °C.
