The document describes the characteristics and test conditions of the APT15D100BCT 1000V 2x15A diode, including the maximum DC reverse voltage, maximum peak repetitive reverse voltage, maximum working peak reverse voltage, maximum average forward current, RMS forward current, and non-repetitive forward surge current. It also provides information on static electrical characteristics and product applications.

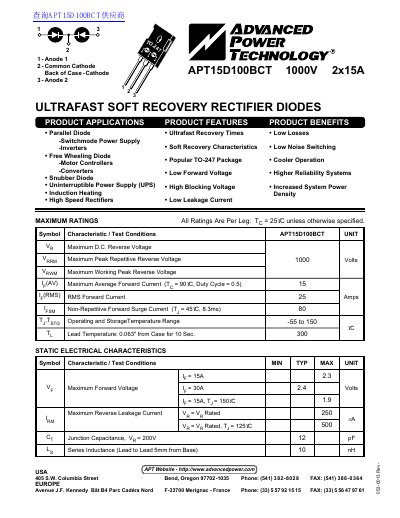

This document is a technical datasheet for the Advanced Power Technology APT15D100BCT, an ultrafast soft recovery rectifier diode designed for high-density applications. The device features parallel diodes with low forward voltage drop and low leakage current, suitable for use in switchmode power supplies, inverters, motor controllers, and UPS systems.
| Maximum D.C. Reverse Voltage (VRRM) | 1000 Volts |
|---|---|
| Maximum Average Forward Current (IF(AV)) | 15 Amps |
| RMS Forward Current (IF(RMS)) | 25 Amps |
| Operating and Storage Temperature Range | -55 to 150 °C |
| Maximum Forward Voltage (VF) | 2.4 Volts |
| Package Type | TO-247AD |
The maximum mounting torque is 0.7 Nm when using a 6-32 or 3.5mm machine screw.
