APT15D30C is an ultrafast soft recovery diode for applications such as switchmode power supplies, inverters, etc. It features ultrafast recovery times, soft recovery characteristics, low power consumption, high reliability and high density.

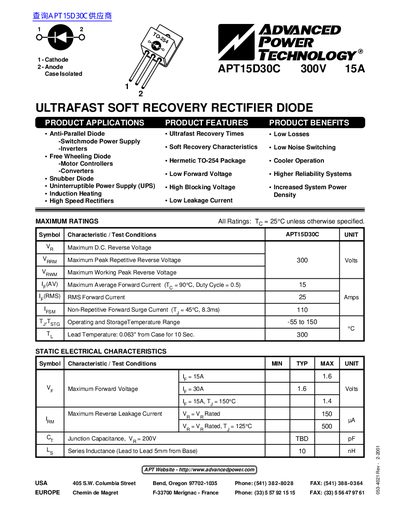

This document is a datasheet for the Advanced Power Technology APT15D30C, an ultrafast soft recovery rectifier diode. It is designed for applications such as switchmode power supplies, inverters, motor controllers, and UPS systems. The device features a hermetic TO-254 package with low forward voltage and low leakage current.
| Maximum D.C. Reverse Voltage | 300 Volts |
|---|---|
| RMS Forward Current | 25 Amps |
| Operating and Storage Temperature Range | -55 to 150 C |
| Maximum Forward Voltage | 1.6 Volts |
| Junction-to-Case Thermal Resistance | 2.3 C/W |
| Package Type | TO-254 |
The maximum average forward current is 15 Amps at a case temperature of 90°C with a duty cycle of 0.5.
The maximum forward voltage is 1.6 Volts when the current is 15A or 30A.
