The maximum reverse voltage of the APT15D100K 1000V 15A Schottky diode is 1000V, the maximum average forward current is 15A, and the maximum reverse leakage current is 10uA. The diode is packaged in TO-220 and features ultrafast recovery times, soft recovery characteristics, low forward voltage, high blocking voltage, and low leakage current. It is suitable for anti-parallel diodes, switch-mode power supplies, inverters, free wheeling diodes, motor controllers, converters, snubber diodes, uninterruptible power supplies (UPS), induction heating, and high speed inverters.

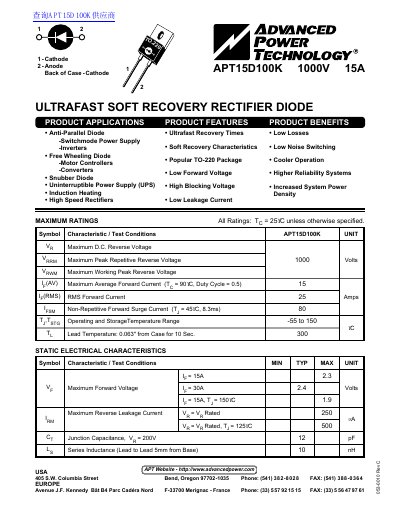

This document provides technical specifications for the APT15D100K, an ultrafast soft recovery rectifier diode designed for applications such as switchmode power supplies, inverters, and motor controllers. The device is housed in a popular TO-220 package and features low losses and low noise switching characteristics.
The datasheet details maximum ratings, static electrical characteristics, dynamic characteristics, and thermal properties. It includes test circuit diagrams and waveform definitions for reverse recovery time and current, along with a mechanical package outline.
| RMS Forward Current | 25 Amps |
|---|---|
| Maximum Forward Voltage | 2.4 Volts |
| Junction-to-Case Thermal Resistance | 1.7 °C/W |
| Package Type | TO-220 |
The maximum mounting torque is 0.7 Nm for screw types 6-32 or 3.5mm machine screws.
