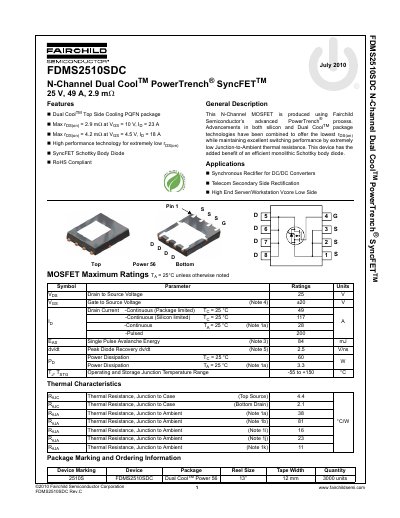

This document describes the features and characteristics of FDMS2510SDC N-Channel Dual CoolTM PowerTrench® SyncFETTM, including maximum on-resistance, high performance technology, SyncFET Schottky body diode, etc.
The document describes the Fairchild Semiconductor FDMS2510SDC, an N-Channel MOSFET produced using the advanced PowerTrench process. It features Dual Cool top-side cooling technology and includes an efficient monolithic SyncFET Schottky body diode for synchronous rectifier applications.
Key specifications include a maximum drain current of 49A (package limited) at 25°C, a breakdown voltage of 25V, and low on-resistance values. The device is available in a PQFN package designed for high-performance DC/DC converters and telecom secondary side rectification.
| Drain to Source Voltage (Vdss) | 25 V |
|---|---|
| Continuous Drain Current (Package limited) | 49 A |
| Continuous Drain Current (Silicon limited) | 17 A |
| Power Dissipation (Ta = 25°C) | 60 W |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case (Top Source) | 4.4 °C/W |
| Thermal Resistance, Junction to Ambient (Note 1a) | 38 °C/W |
It is suitable for synchronous rectifiers in DC/DC converters and telecom secondary side rectification.
Yes, the datasheet states that the product is RoHS Compliant.
