FDML7610S is a dual N-channel power MOSFET from Fairchild Semiconductor Corporation, with a rated working voltage of 30V and a rated current of 30A. The maximum on-resistance is 7.5mΩ.

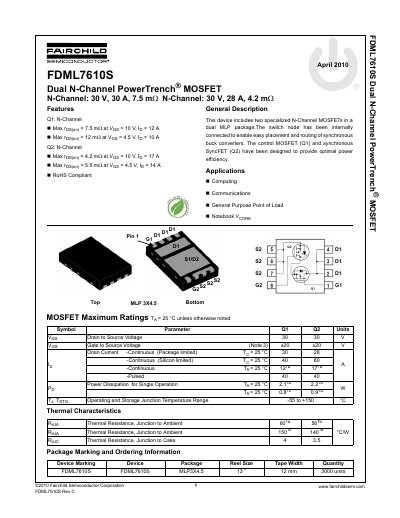

The document describes the Fairchild Semiconductor FDML7610S, a dual N-Channel PowerTrench MOSFET designed for synchronous buck converter applications. The device integrates two specialized MOSFETs (Q1 and Q2) into a single dual MLP package to optimize power efficiency.
Key specifications include a drain-to-source breakdown voltage of 30V for both channels, with continuous drain currents rated at 30A for Q1 and 28A for Q2. The device operates within a junction temperature range of -55°C to +150°C and is RoHS compliant.
| Drain to Source Voltage (VDS) | 30 V |
|---|---|
| Continuous Drain Current Q1 | 30 A |
| Continuous Drain Current Q2 | 28 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | Dual MLP |
Yes, the datasheet states that the device is RoHS Compliant.
The device operates and stores within a junction temperature range of -55 to +150 °C.
