This document provides information about Motorola TMOS power MOSFET transistor device data (medium power surface mount products)

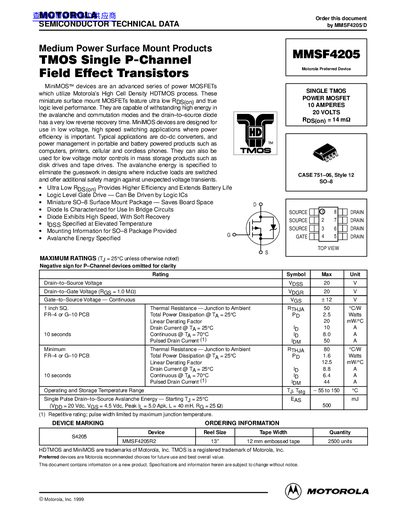

This document provides technical data for the Motorola MMSF4205, a single TMOS Power MOSFET designed as a preferred device. It features an ultra-low on-resistance of 14 mΩ and is intended for low voltage, high-speed switching applications in portable electronics.
| Drain-to-Source Voltage (V(BR)DSS) | 20 V |
|---|---|
| Continuous Drain Current (ID) | 10 A |
| Static Drain-to-Source On-Resistance (RDS(on)) | 14 mΩ |
| Operating Temperature Range | -55 to 150 °C |
| Input Capacitance (Ciss) | 3640 pF |
The typical static drain-to-source on-resistance is 14 mΩ.
The continuous gate-to-source voltage rating is +12 V.
