MiniMOS is the high performance low voltage, high speed MOSFET series, suitable for applications where power efficiency is critical.

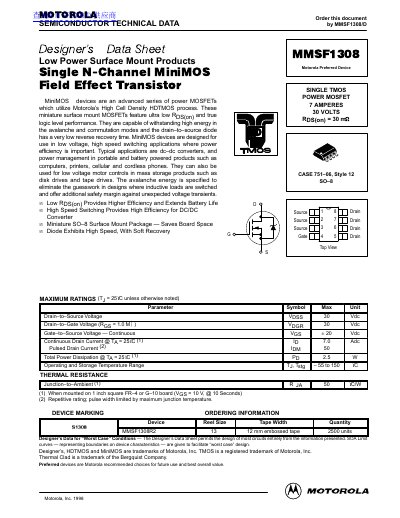

The Motorola MMSF1308 is a single N-Channel MiniMOS Field Effect Transistor designed for low voltage, high speed switching applications. It utilizes Motorola's High Cell Density HDTMOS process to feature ultra low RDS(on) and true logic level performance. The device is capable of withstanding high energy in avalanche and commutation modes and includes a drain-to-source diode with very low reverse recovery time. Typical applications include DC-DC converters, power management in portable products, and low voltage motor controls.
The document details maximum ratings such as a drain-to-source voltage of 30 V and a continuous drain current of 7.0 A. It also provides comprehensive electrical characteristics including off characteristics, on characteristics, dynamic characteristics, and switching parameters. The datasheet includes typical electrical characteristic graphs illustrating on-region characteristics, transfer characteristics, and on-resistance variations with temperature and drain current.
| Drain-to-Source Voltage | 30 V |
|---|---|
| Continuous Drain Current | 7.0 A |
| Total Power Dissipation | 25 W |
| Operating Temperature Range | -55 to 150 °C |
| Static Drain-to-Source On-Resistance | 30 mQ |
| Package Type | SO-8 |
The maximum drain-to-source voltage is 30 V.
The continuous drain current is 7.0 A at a temperature of 25°C.
The operating and storage temperature range is from -55 to 150 °C.
