FDD8780/FDU8780 N-Channel PowerTrench® MOSFET is a N-Channel MOSFET launched by Fairchild Semiconductor Corporation. This device has the features of low gate capacitance, low on-resistance and fast switching speed. It is applied to Vcore DC-DC for desktop computers and servers and VRM for intermediate bus architecture.

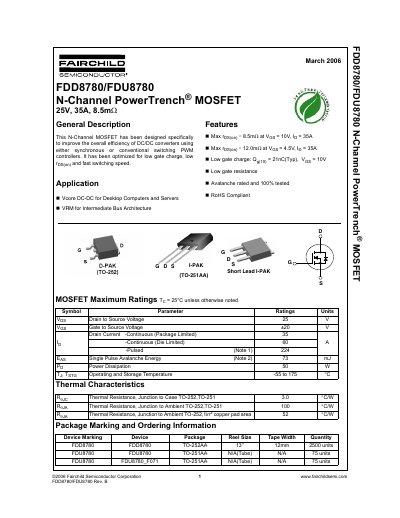

This document is a technical datasheet for the Fairchild Semiconductor FDD8780 and FDU8780 devices. These are N-Channel PowerTrench MOSFETs rated at 25V, 35A continuous drain current (package limited), and 8.5mQ on-resistance. They are specifically designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers.
| Drain to Source Voltage (VDS) | 25 V |
|---|---|
| Continuous Drain Current (Package Limited) | 35 A |
| On-Resistance (VGS=10V, ID=35A) | 8.5 mQ |
| Power Dissipation (TO-252, TO-251) | 50 W |
| Operating and Storage Temperature Range | -55 to 175 °C |
The maximum continuous drain current is 35 A when limited by the package.
