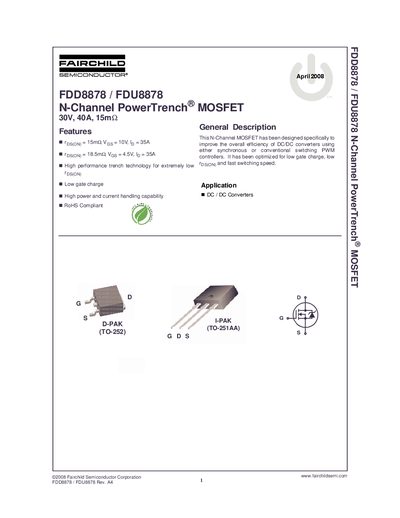

The document describes the FDD8878 and FDU8878 as N-Channel PowerTrench MOSFETs optimized for low gate charge, low on-resistance (Rds(on)), and fast switching speed. These devices are specifically designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers.
| Drain to Source Voltage (Vdss) | 30 V |
|---|---|
| Continuous Drain Current (Tc = 25°C, Vgs = 10V) | 40 A |
| Power Dissipation | 40 W |
| Operating and Storage Temperature Range | -55 to 175 °C |
| Thermal Resistance Junction to Case (TO-252, TO-251) | 3.75 °C/W |
They are designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
The maximum continuous drain current is 40 A.
Yes, the document states they are RoHS Compliant.
