The FDD8876 is a N-Channel PowerTrench® MOSFET from Fairchild Semiconductor Corporation. It is rated at 30V and 73A, with a typical on-resistance of 8.2mΩ. It is suitable for use in DC/DC converters.

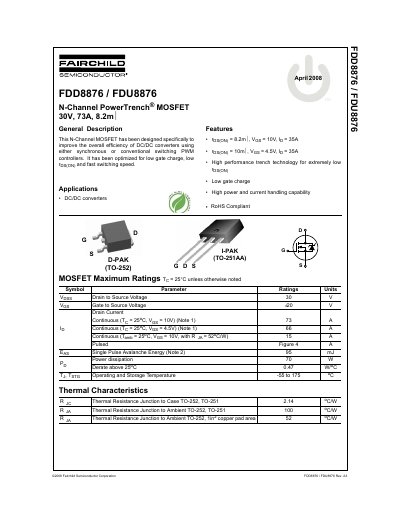

The document describes the FDD8876 and FDU8876, which are N-Channel PowerTrench MOSFETs designed to improve efficiency in DC/DC converters using synchronous or conventional switching PWM controllers. Key features include low on-resistance (RDS(on)), low gate charge, high power handling capability, and RoHS compliance.
| Drain to Source Voltage (VDS) | 30 V |
|---|---|
| Gate to Source Voltage (VGSS) | 42 V |
| Continuous Drain Current (Tj = 25°C, VG = 10V) | 73 A |
| Power Dissipation | 70 W |
| Operating and Storage Temperature Range | -55 to 175 °C |
| Thermal Resistance Junction to Case (TO-252, TO-251) | 2.14 °C/W |
| Package Types | TO-252AA / TO-251AA |
They are designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
Yes, the document lists RoHS Compliant as one of its features.
