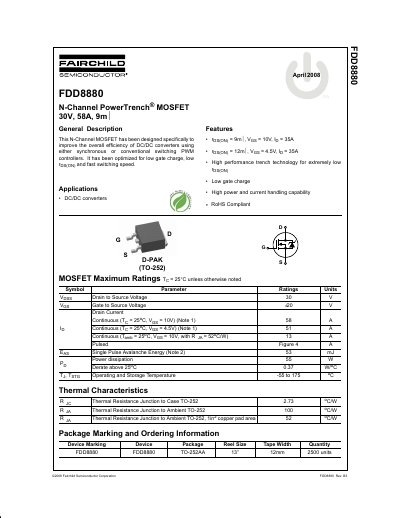

The FDD8880 is an N-channel PowerTrench® MOSFET with an operating voltage of 30V and an operating current of 58A. It has an RDS(ON) of 9mΩ and is suitable for DC/DC converters. It has low gate charge, low RDS(ON) and fast switching speed.
The FDD8880 is an N-Channel PowerTrench MOSFET designed to improve the overall efficiency of DC/DC converters using controllers. It has been optimized for low gate charge, low on-resistance, and fast switching speed. The device is suitable for both synchronous and conventional switching PWM applications.
| Drain to Source Voltage | 30 V |
|---|---|
| Continuous Drain Current (Tj = 25°C, Vgs = 10V) | 58 A |
| On-Resistance (Vgs = 10V, Id = 35A) | 9 mΩ |
| Package Type | D-PAK (TO-252) |
| Operating Temperature Range | -55 to 175 °C |
The maximum power dissipation is 55 W.
Yes, the device is RoHS Compliant.
