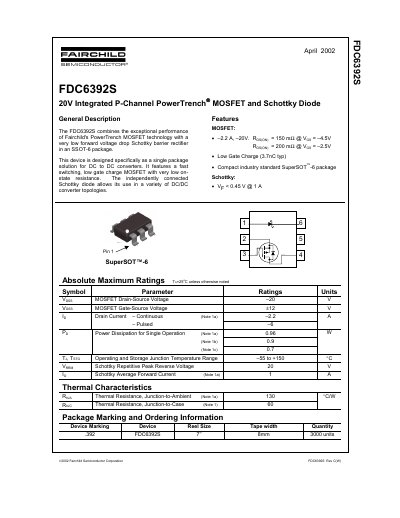

The FDC6392S is a 20V integrated P-channel PowerTrench MOSFET and Schottky diode from Fairchild Corporation. It features a fast switching, low gate charge MOSFET with very low on-state resistance.
The FDC6392S is a single-package solution designed specifically for DC to DC converters. It combines Fairchild's PowerTrench MOSFET technology with a low forward voltage drop Schottky barrier rectifier. The device features a fast switching, low gate charge MOSFET with very low on-state resistance, alongside an independently connected Schottky diode suitable for various converter topologies.
| Drain-Source Voltage | -20 V |
|---|---|
| Drain Current (Continuous) | -2.2 A |
| Power Dissipation | 0.96 W |
| Operating Junction Temperature Range | -55 to +150 °C |
| Schottky Repetitive Peak Reverse Voltage | 20 V |
| Schottky Average Forward Current | 1 A |
| Package Type | SuperSOT™-6 |
| Total Gate Charge | 3.7 nC |
It is designed specifically as a single package solution for DC to DC converters.
The operating and storage junction temperature range is from -55 to +150 °C.
The forward voltage is 0.45 V at 1A and 25°C.
