The FDC642P is a single-channel 2.5V specified power MOSFET with features such as fast switching speed, low gate charge, and extremely low on-state resistance. It is produced using Fairchild's advanced PowerTrench® process to minimize on-state resistance and maintain low gate charge for superior switching performance.

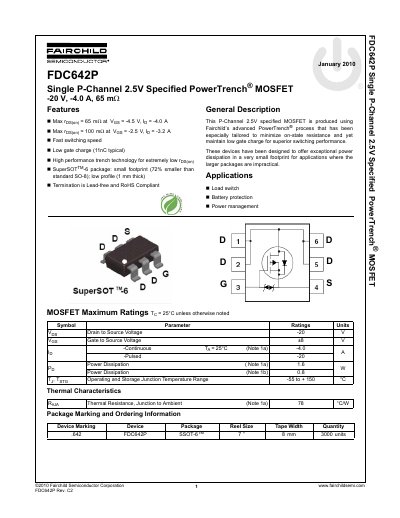

The document describes the Fairchild FDC642P, a Single P-Channel 2.5V Specified PowerTrench MOSFET designed for applications requiring low on-state resistance and fast switching speed in small footprints. The device features a SuperSOT-6 package that is significantly smaller than standard SO-8 packages.
| Drain to Source Voltage | -20 V |
|---|---|
| Continuous Drain Current | -4.0 A |
| Power Dissipation | 1.6 W |
| Operating Junction Temperature Range | -55 to + 150 °C |
| Thermal Resistance (Junction to Ambient) | 78 °CW |
| Package Type | SuperSOT-6™ |
The component features low gate charge with a typical value of 11 nC.
