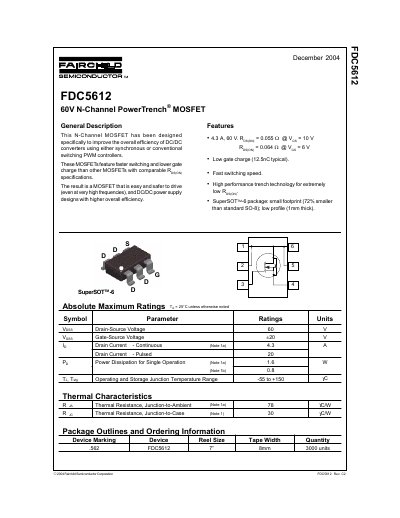

The FDC5612 is a 60V N-Channel PowerTrench® MOSFET designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.
The FDC5612 is a 60V N-Channel MOSFET designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. It features faster switching, lower gate charge, and high-performance trench technology.
| Drain-Source Voltage | 60 V |
|---|---|
| Pulsed Drain Current | 20 A |
| Package Type | SuperSOT-6 |
| Gate Charge (Typical) | 12.5 nC |
The device supports a continuous drain current of 4.3 A.
It has a maximum power dissipation rating of 1.6 W for single operation.
The SuperSOT-6 package has a low profile that is 1mm thick.
