This product is a 1.4A, 150V N-channel MOSFET that is optimized for low gate charge, low RDS(ON) and fast switching speed. It is suitable for DC/DC converter applications.

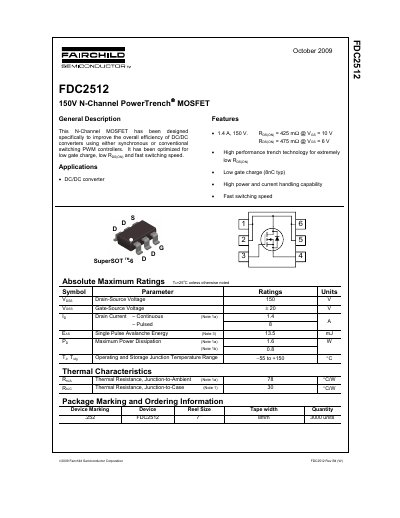

The FDC2512 is an N-Channel MOSFET designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. It features low gate charge, low on-resistance, and fast switching speed.
| Drain-Source Voltage | 150 V |
|---|---|
| Pulsed Drain Current | 8 A |
| Output Capacitance | 22 pF |
| Turn-Off Delay Time | 22 ns |
| Total Gate Charge | 8 nC |
It is designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
The maximum continuous drain current is 1.4 A.
The maximum drain-source voltage rating is 150 V.
The typical gate charge is 8 nC.
