FCD5N60/FCU5N60 is a 600V N-channel MOSFET produced by Fairchild Corporation, with low RDS(on), low gate charge and low output capacitance.

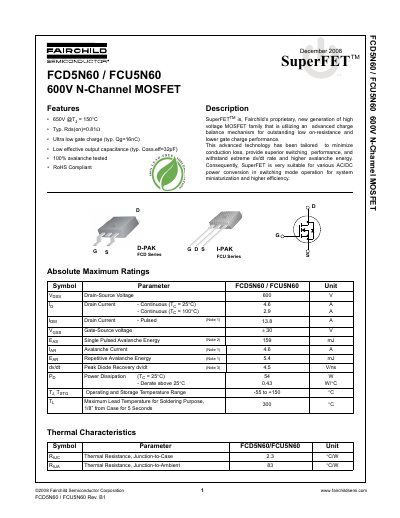

This document is a datasheet for the Fairchild Semiconductor FCD5N60 and FCU5N60, which are 600V N-Channel MOSFETs utilizing the proprietary SuperFET technology. The devices are designed for high-voltage switching applications, offering low on-resistance and low gate charge to minimize conduction loss and improve efficiency in AC/DC power conversion systems.
| Drain-Source Voltage | 600 V |
|---|---|
| Continuous Drain Current (25°C) | 4.6 A |
| Typical On-Resistance | 0.81 Ω |
| Typical Gate Charge | 16 nC |
| Operating Temperature Range | -55 to +150 °C |
| Package Types | D-PAK, G-PAK |
The device operates and stores within a temperature range of -55 to +150 °C.
