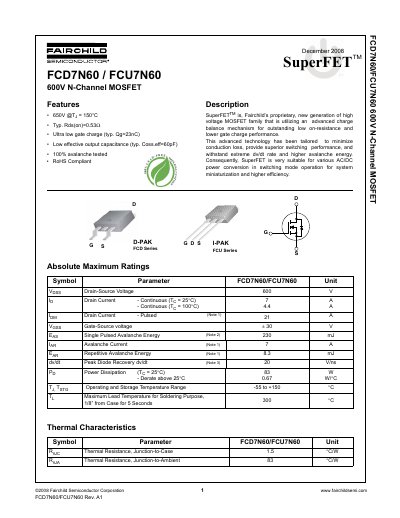

This document describes the features and characteristics of the FCD7N60/FCU7N60 600V N-Channel MOSFET produced by Fairchild Semiconductor Corporation, including ultra-low gate charge, low output capacitance, and high voltage tolerance.
The document describes the Fairchild FCD7N60 and FCU7N60, which are 600V N-Channel MOSFETs utilizing the proprietary SuperFET™ technology. This advanced charge balance mechanism is designed to minimize conduction loss and provide superior switching performance for AC/DC power conversion applications.
| Drain-Source Voltage | 600 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 7 A |
| Typical On-Resistance | 0.53 Ω |
| Typical Gate Charge | 23 nC |
| Operating Temperature Range | -55 to +150 °C |
| Thermal Resistance Junction-to-Case | 1.5 °C/W |
