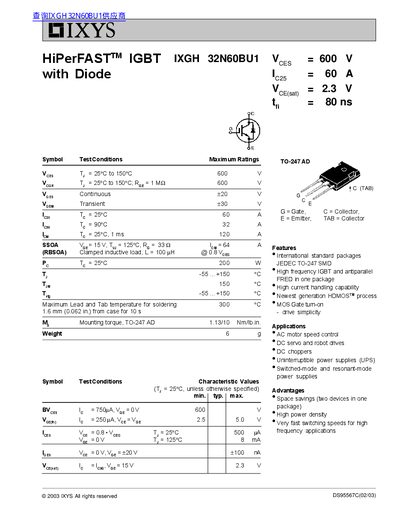

This document is a technical datasheet for the IXYS IXGH32N60BU1, a High frequency IGBT and antiparallel FRED device. It combines high current handling capability with MOS Gate turn-on drive simplicity within an international standard JEDEC TO-247 SMD package.
The document provides maximum ratings, characteristic values for the IGBT and reverse diode, switching times, thermal resistance data, and safe operating area curves. Applications listed include AC motor speed control, DC servo drives, UPS systems, and switched-mode power supplies.
| Package Type | JEDEC TO-247 SMD |
|---|---|
| Collector-Emitter Voltage (Vces) | 600 V |
| Continuous Collector Current (Ics) @ 25°C | 60 A |
| Collector Current (Ics) @ 90°C | 32 A |
| Peak Pulse Collector Current (Icp) | 120 A |
| Mounting Torque | 1.13/10 Nm/lb.in. |
| Turn-on Delay Time (td(on)) | Min. 25 ns |
| Reverse Recovery Charge (Qrr) | Typ. 40 nC |
Applications include AC motor speed control, DC servo and robot drives, DC choppers, UPS systems, and switched-mode power supplies.
The maximum lead and tab temperature for soldering is 300 °C for 1.6 mm from the case for 10 seconds.
The typical saturation voltage (Vces) at Tj = 25°C is 2.3 V.
